MORNSUN

MORNSUN Guangzhou Science & Technology Co is a leading manufacturer of EN50155-compliant DC/DC converters for the railway industry with output power ranging from 6W to 150W.

The railway DC/DC power converters are designed to comply with higher isolation requirements for rolling stock and trackside applications.

In addition to railway DC/DC power converters, MORNSUN also manufactures high-quality products, including AC/DC converters, general DC/DC converters, adapters, isolation transmitters, IGBT drivers and LED drivers, which have UL, CE, CSA, CB and DoE Level VI certification.

MORNSUN 6W-40W R3 railway DC/DC converters

Converters are used in electronic equipment on board rolling stock that has higher isolation, shock and vibration, input voltage, temperature, humidity and surge requirements from technological and environmental limitations.

MORNSUN provides DC/DC converters for rail applications.
An automatic filling machine.
An automatic solder paste thickness tester.
Wave soldering equipment.
An automatic spot welding machine.
A multi-axis automatic winding machine.

MORNSUN’s 6-40W R3 generation of railway DC/DC converters is ideally suitable for 72V, 96V and 110V railway electronic equipment such as monitoring systems, air-conditioning controllers and information displays.

These converters in the range include URA1D-YMD-6WR3 (dual output), URB1D-YMD-6WR3 (single output), URB1D-LMD-10WR3 (single output), URB1D-LMD-15WR3 (single output), URB1D-LMD-20WR3 (single output), URB1D-LD-20WR3 (single output), URE1D-LD-20WR3 (dual output) and URF-LD-40WR3 series (single output), offering power outputs of 6W, 10W, 15W, 20W and 40W.

The URA1D and URB1D series offer 2,250VDC isolation, while the URE1D and URF1D series offer 3,000VDC isolation. All models operate in temperature ranges from -40°C and 85°C and their electromagnetic interference (EMI) meets EN50121-3-2 standards without external components. A wide universal input voltage range of 40VDC to 160VDC is featured with single and dual output voltages of 3.3VDC, 5VDC, 12VDC, 15VDC, 24VDC, 48VDC, ±5VDC, ±12VDC ,±15VDC and ±24VDC, depending upon the series.

6W R3 railway DC/DC converters are supplied in a 1inx1in package. 10W, 15W, 20W and 40W are housed in a high-compatibility 2inx1in international standard package with two available pin-out positions inside or outside of the power converter.

A2S packages are also available for chassis mounting, or A4S packages for DIN-Rail mounting applications. Both options provide protection against polarity reversal. A heat sink is also available for improved thermal performance.

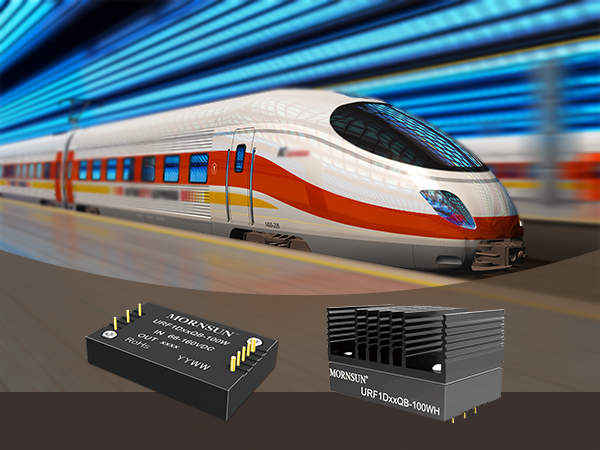

MORNSUN 50-150W railway DC/DC converters

Featuring an optional heat sink and an output isolation of 3,000VDC, the URF1D series is also specialised for electronic equipment. The range includes the URF1D_QB-50W, URF1D_QB-75W, URF1D_QB-100W and URF1D_HB-150W series, which offer power outputs of 50W, 75W, 100W and 150W.

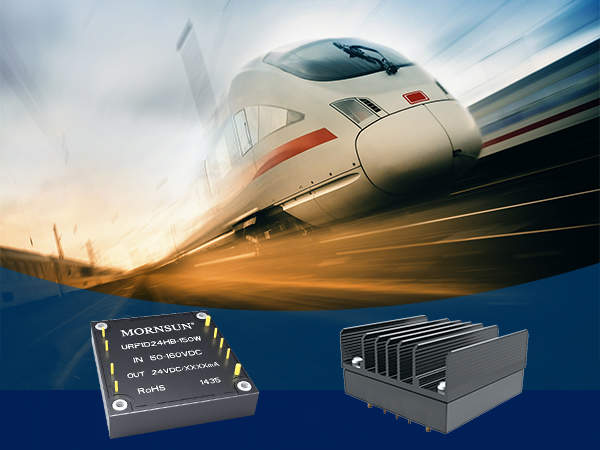

The URF1D_HB-150W series offers an input voltage range of 50VDC to 66VDC with output voltages of 12VDC (10,000mA), 15VDC (8,000mA) and 24VDC (5,000mA). Output voltages are 3.3VDC, 5VDC, 12VDC, 15VDC and 24VDC, while input voltage ranges from 66VDC-160VDC.

These converters have an operating temperature between -40°C and 100°C with up to 92% efficiency, and voltage, current and short circuit protection, as well as an EMI that meets CISPR22 / EN55022 Class B.

50W, 75W and 100W railway DC/DC converters are supplied in a 1/4 brick international standard package. 150W is housed in a 1/2 brick international standard package.

Typical applications include:

  • Air-conditioning systems
  • Automated train control systems
  • Ventilation and traction systems
  • Passenger information
  • Business class seats
  • Door controls
  • Braking systems
  • Radio
  • Lighting

The units are fitted with protection for:

  • Input Under-voltage
  • Output short circuit
  • Output over-current
  • Output over–voltage
  • Over-temperature
  • Reverse voltage, available with A2S (Chassis mounting) or A4S (35mm DIN-Rail mounting)

Free product samples and enquiries

Free sample converters can be delivered by MORNSUN’s authorised distributors in more than 40 countries. MORNSUN’s dedicated field application engineers (FAE) provide high-quality support, while its sales team is available to respond to enquiries at any time.

White Papers

  • Application Guide for DC/DC Railway Power Sources

    This application note demonstrates the different requirements that are in use for battery-powered railway applications and introduces MORNSUN’s rugged railway DC/DC converters and application notes.

  • Power Solution for Rail Transit

    China has the world's largest high-speed rail network as long as 20,000km so far, which not only comprehensively enhances the quality of China's road network but also further develops the regional economy coordinately.
