Knox Kershaw

Improving the Productivity of Railway Track Maintenance

Address
11211 Trackwork Street,
Montgomery,
36117,
Alabama,
United States of America
Phone

KBR 925

Knox Kershaw Inc is a leading designer and manufacturer of railway maintenance equipment, including ballast regulators, snow fighters, tie cranes, bridge cranes, tie replacers, tie inserters, kribber adzers, yard cleaners, and other machines, parts and equipment for the railway industry.

Since 1924, the company has served the needs of its customers worldwide, with sales and service representatives available across the globe. Knox Kershaw is headquartered in Montgomery, Alabama and currently has maintenance-of-way equipment in operation in the US, Canada, South America, Central and South East Asia, and Australia.

Versatile ballast regulators for short-lines and contractors

The KBR 860 is the latest in the Knox Kershaw Ballast Regulator line up, designed to replace the older models KBR 850 and KBR 875. The 860 features excellent visibility, a new extended-wear wing structure, and a clean roof design for safe and easy maintenance.

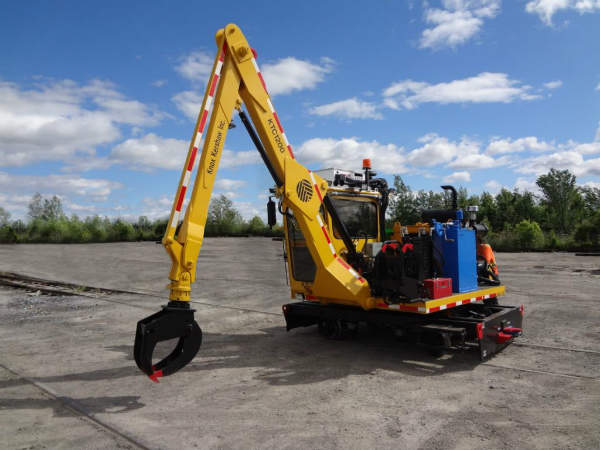

The KTC 1200 Tie Crane is a heavy-duty crane used for moving ties / sleepers of up to 1,200lbs (554kg) at a radius of 24ft from the track center.

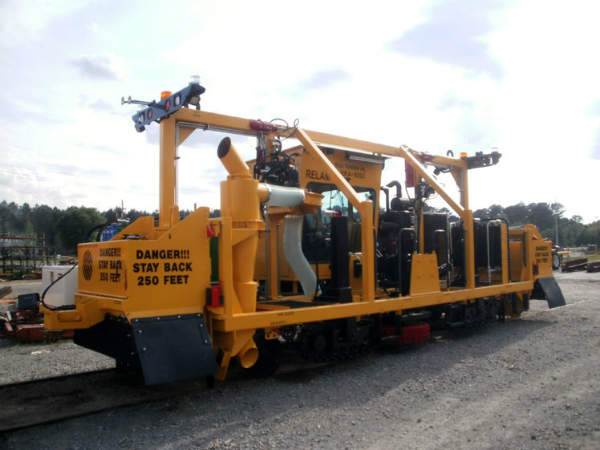

The KKA 1050 Kribber Adzer is designed for clearing out the cribs at the tie plate area and adzing the ties in a continuous operation.
The KSF 940 can also be converted to a ballast regulator with brush cutter attachments for year round use.

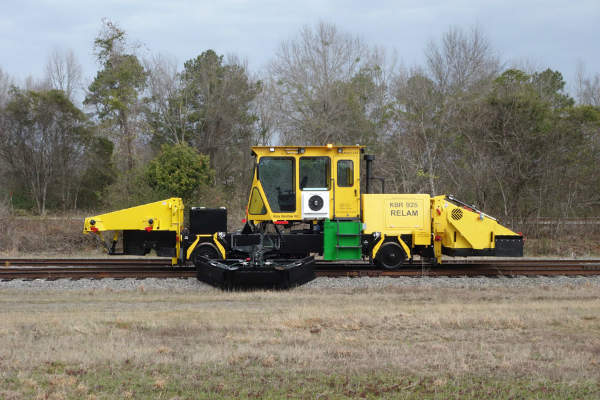

KKI's most powerful ballast regulator, the KBR 925 boasts superior operator visibility and a tilt cab for safe and easy access to major components.

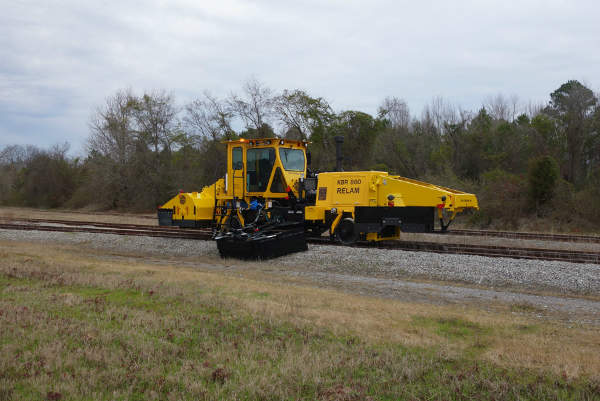

The KBR 860 is the newest ballast regulator in the KKI product line. Its 14in wheelbase, 10in height, and 36K weight make it an easily transportable machine.

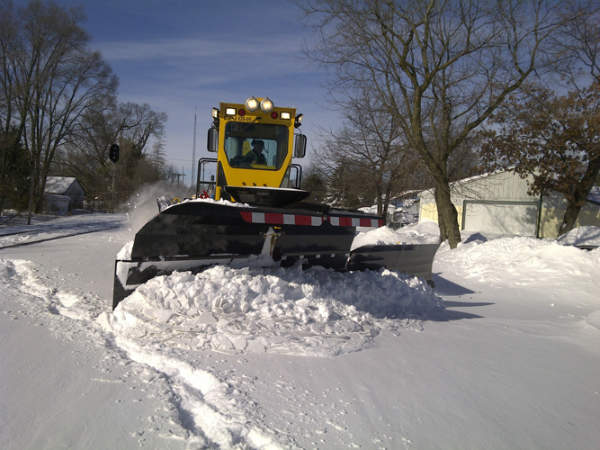

The KSF 940 is especially designed to handle extremely cold weather conditions and can clear even the most heavily packed snow, all while keeping the operator warm and comfortable.

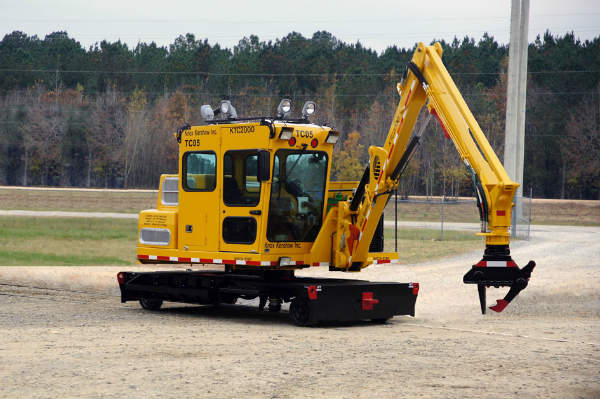

The KTC 2000 is especially designed to work in tight clearances. Its upper deck and boom move independently to allow it to work in places where deck rotation is inhibited.

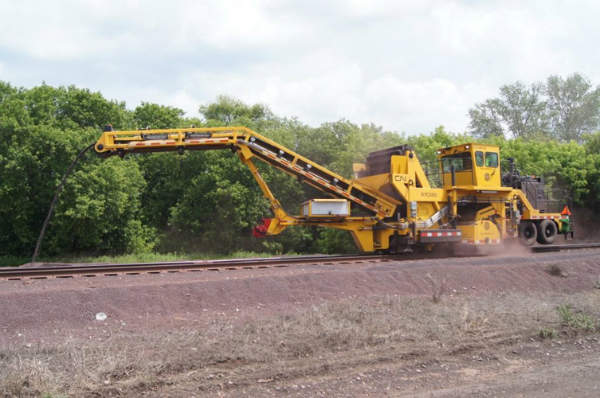

The KYC 550 Yard Cleaner clears track and shoulders as well as space between the track on multitrack lines.

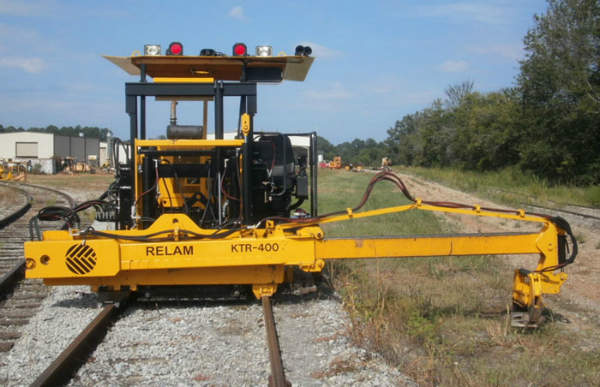

The KTR 400 Tie Replacer is an efficient tie exchanging machine that uses hydraulically powered clamps and arm to effortlessly remove old ties and replace them.

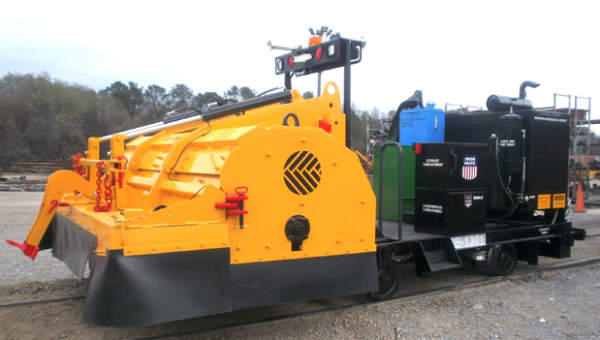

The KPB 200 Plate Broom is used as one of the machines in the tie replacing process to remove all material away from the fastening area.

For more features and options, visit the KBR860 product page.

Heavy-duty ballast regulators for track profiling and maintenance

The KBR 925 is designed for ballast work on all types of track. Superb visibility in every direction, especially the wing areas, makes it the ideal machine for final profiling. The one pass transfer plow used in conjunction with the wing makes transferring from shoulder to shoulder a one pass operation, while leaving one shoulder profiled.

The reversible wings allow work in either direction so no movement is lost. The heavy duty broom box gives great service life, and the standard reversing valve allows ballast to be swept away from switches and road crossings.

For more features and options, visit the KBR 925 product page.

International and convertible gauge ballast regulators

The KNG 800 offers the same convenient and efficient features of all KKI Ballast Regulators to the international market. The 800 is offered for 914mm, 1,000mm and 1,067mm gauges. The short wheel base and narrow track allow this machine to negotiate tight curves. The wide frame ensures a stable working platform.

Using a unique system designed by Knox Kershaw, the KNG 800 and KBR 925 can be converted between gauges. This feature is especially useful for countries that use multiple track widths throughout their rail system. Find out more on the KNG 800C and KBR 925 product pages.

Three-in-one snow fighter, ballast regulator and brush cutter

The KSF 940 is a custom built snow fighter, based off the KBR 925 frame. The 940 sports a 50,000lb working weight, a larger cab for a second operator’s seat, special cold weather heaters, and specially designed wings, plows, and brooms, built specifically for snow fighting in the harshest environments. The large curl kits allow for plowing through the deepest of snow. The wings push snow 16 feet from the track center, and the snow switch cleaner can blow snow over 20 feet.

The KSF 940 can be converted to a ballast regulator for use in warmer climates, and additionally can be equipped with Diamond Mowers Inc. brushcutter attachments on both sides of the machine to control light to medium brush and grass.

Heavy-duty tie and sleeper handling crane

The KTC 1200 tie / sleeper handling crane is capable of handling 1,200lbs (544kg), at a radius of 24ft (7.32m) from the track center. The unit is capable of 360° rotation, while the heavy-duty all-welded reinforced construction on the upper deck and mainframe withstands loading and provides long life to the equipment. The minimal tail swing reduces the possibility of fouling the adjacent track.

The KTC 2000 tie crane has the same handling capabilities of the 1200, but with a few added features that make it perfect for working cleanly and efficiently in tight clearances. The upper deck is capable of 360° rotation, as is the tie grapple. Additionally, the boom swing moves independently of the deck, and can swing 120° to 60°, each side of centre.

Yard cleaner for efficient clean up of railroad track and shoulder

Knox Kershaw Yard Cleaner, Model KYC 550 clears track and shoulders, as well as space between the track on multi-track lines, including points and crossings. The machine is capable of sweeping and loading up to 2.66 cubic yards of waste material per minute.

After a single pass, the track, including fasteners, is completely cleared of any unwanted material. The KYC 550 is also capable of clearing the entire tie width, as well as shoulders for the total path width of just under 15 feet.

Kribber adzer with adzer cut depth control

The KKA 1050 is a heavy duty kribber adzer that is designed for clearing out the cribs (at the tie plate area), and adzing the ties in a continuous operation. Newly redesigned in 2014, the KKA1050 is designed to be easy to operate, simple to troubleshoot, and easily accessible for repair and service. It features enhanced operator ergonomics, improved layout of components, and superior dust suppression and fire prevention / suppression.

The adzer head uses a slider box arrangement with hydraulic cylinders for horizontal and vertical movements. This provides sturdy mounting and precise control from the cab. The adzer bearing housing is flange-mounted to the head frame, which means that bolts don’t break off in the housing.

The adzer features a hydraulically controlled skid arrangement that allows the cutter head to maintain a constant cutting depth. For initial setup, simple adjustments are made to select the desired depth, eliminating operator error.

Knox Kershaw parts, service, and training

Knox Kershaw prides itself on fast delivery of parts for all KKI machines, as well as parts for machines by other manufacturers.

Additional operator and maintenance training is offered for all KKI machines, as well as other manufacturer’s machines.

Other KKI products include:

  • KDB 600 double broom
  • KDB 200 plate broom
  • KSU 300 switch undercutter
  • KBC 1100 bridge crane
  • KAT anchor transporter
  • KUV 750 utility vehicle
  • KTR 400 tie replacer

For more information on these and other products and services please visit the Knox Kershaw website or make an enquiry below.
