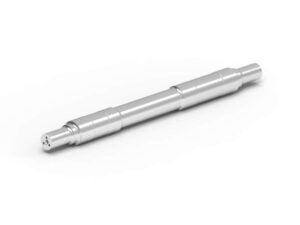

The hollow design of a railroad axle is one of the most effective methods to...
YCY Mobile Rolling Bearing Mount and Demount Machine is flexible in movement, free from site constraints, providing bearing press-fitting and withdrawing at the wheelset repair site.
Press-mounting and withdrawing can be done easily by replacing simple tooling to meet relative requirements.
Computer control is used to automatically generate press-fit curves and judge whether press-fitting is qualified, automatically record press-fitting process data, and provide a remote-based data collection solution based on a Cloud platform to better serve users.
Main technical parameters include:
- Main cylinder diameter: φ200mm
- Front cavity working pressure: 21.5MPa
- Press-fitting force: 500kN
- Rear cavity working pressure: 17.5MPa
- Unloading force: 500kN
- Cylinder stroke: 320mm
- Applicable wheel diameter: φ680mm-φ1,050mm
- Motor power: 3kW
- Overall dimension: 1,800mm×700mm×1,200mm
Jiangsu Railteco Equipment Company is a professional manufacturer focusing on rail transportation equipment products. Railteco...

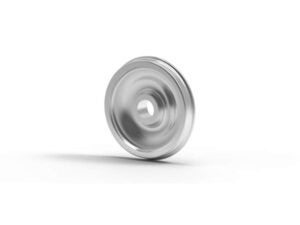

Resilient wheels have an elastic layer between the steel tire and wheel centre. This elastic...
