UniControls - Industrial and Rail Transportation Control Systems

The great advantage of the UniControls Company is our team of experienced experts and our wide-ranging technical background for innovations, enabling us to design, manufacture and deliver high-tech solutions - UniControls products include train control systems, rail communication gateway components, interface boards and traction units.

Since 1991, the joint-stock company UniControls, a.s. has operated as a system integrator with its own development capacities in industrial control systems, avionic applications and transportation.

At present, the company focuses on sophisticated applications in transport systems. UniControls is able to offer complete solution for rolling stock

TRAIN MANAGEMENT, DIAGNOSTICS AND CONTROL SYSTEM - UniTrack

The train management, diagnostics and control system UniTrack represents a set of means covering a full range of control management tasks in railway vehicles. The system fully complies with technical IEC, EN and UIC standards (e.g. IEC 61375-1, EN 50155, UIC 556).

We are able to offer solutions for EMU, DEMU, locos and high-speed trains. Our performance has been confirmed by numerous customers' references, highly appreciating the advantages of TCN communication, reliability and the modern concept of a decentralised modular system. QMS is according to ISO 9001:2001.

UniTrack consists of:

• Powerfull microprocessor for demanding control algorithms
• Dedicated microcontroller for communication protocol stacks
• UniCAP software for developing user applications according to IEC 61131-3
• Monitoring and Diagnostic System (MDS) platform according to UIC 557
• Embedded Linux OS
• MVB, CANOpen, Ethernet and RS232/422/485 interfaces

UniTrack, in combination with other UniControls products, represents a complete modular flexible on-board system for trains, underground trains and trams.

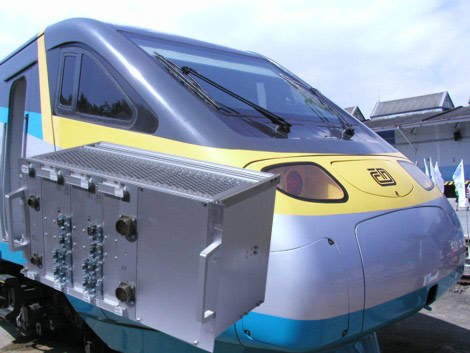

UIC GATEWAY (WTB / MVB, WTB / CAN) FOR RAIL COMMUNICATION SYSTEMS

UIC Gateway is the basic component for communication in trains and features single or redundant gateways in one rack. The UIC Gateway manages redundant data transfer between all devices in trains and vehicle computers in compliance with IEC 61375-1. At the beginning of 2005, the UIC Gateway was internationally certified according to UIC 556.

INTERFACE BOARDS MVB / VME

Interface 3U boards MVB / VME are designed to connect a redundant MVB bus.

MODULAR TRACTION UNIT – UniDrive

UniDrive is a modular traction drive control unit designed for the control of both DC and asynchronous traction drives. The unit contains the latest types of signal processors and has a sufficient computing margin to perform relating functions (e.g. anti-skid protection, control of brake converter and interactions between the inverters).

OTHER ERS UNICONTROLS PRODUCTS - PASSENGER INFORMATION SYSTEMS, EVENT RECORDERS AND SURVEILLANCE SYSTEMS

• DMI (Driver Machine Interface), including LCD touch screen display and keyboard
• Speedometer
• Event recorder with local I/O
• Wireless data transfer units
• Passenger information system, including LED, DOT-LED boards and voice announcement system
• Reservation system display
• Surveillance system
• Infotainment system

REFERENCES

Equipment for rolling stock:

• Control system, train communication system and passenger information system for suburban train EMJ 471 (Czech Railways)

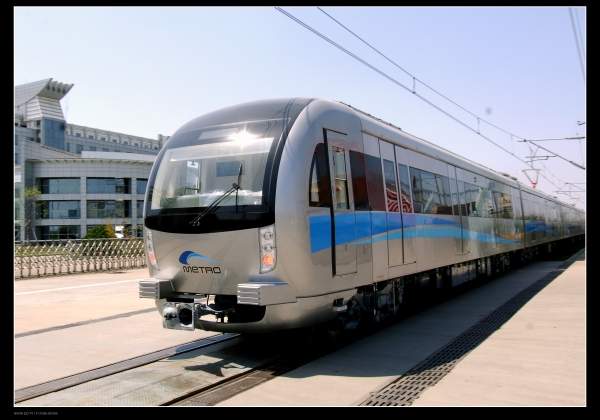

• Control system and train communication system for modernized metro trainsets (Metro Prague)
• Control system and train communication system for modernized metro trainsets (Metro Kiev)
• Traction drive units (Metro Kazan)
• Diagnostic system for locomotives (Czech Railways)
• Driver's display for locomotives (Slovak Railways)
• UIC gateway for trains Pendolino (Czech Railways), Lanzaderas (Spanish Railways), Minuetto (Italian Railways)

Rail traffic control systems:

• Train dispatcher center (Metro Prague)

RESEARCH AND DEVELOPMENT

UniControls has been developing its own research and development base since the company was founded. Our own R&D center allows UniControls to manufacture hi-tech products and be flexible for customers' special needs. We participate in wide range of international inovation projects together with our partners and universities, including projects supported by EU grants.

SUBSIDIARY COMPANIES

• UniControls - Tramex s.r.o.
• UniControls Slovakia
• UniControls Electronics Czech - India
