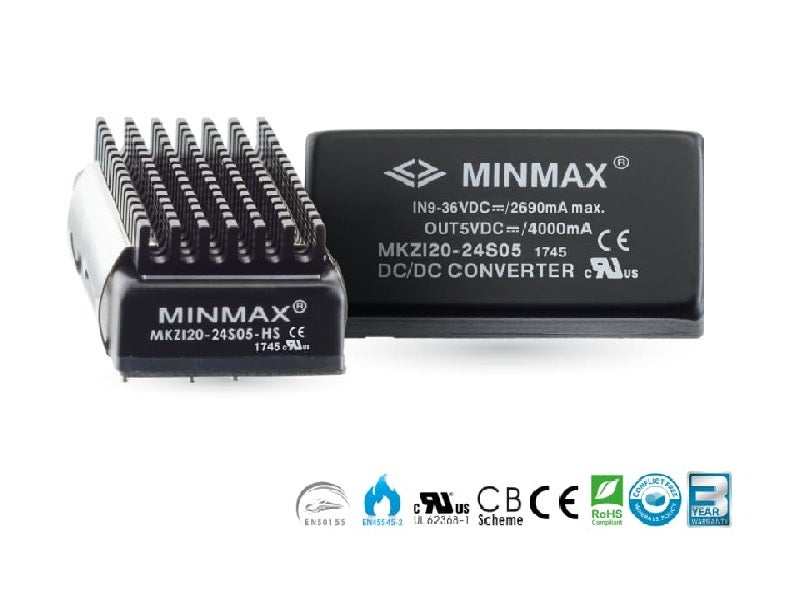

The MKZI20 series is a range of high performance 20W isolated DC-DC converters within an encapsulated 2″X1″package, which has been specifically design for railway applications. There are 18 models available for the railway system of multi-input voltage ranges including 24(9~36)VDC, 48(18~75)VDC, 72/110(40~160)VDC, and fixed output voltage regulation. Further features include under-voltage, overload, over voltage, short circuit protection, remote ON/OFF, output voltage trim, and conducted EMI EN 55032/11 Class A.

The MKZI20 series conform to vibration and thermal shock/bump test EN 61373, cooling, dry and damp heat test IEC/EN 60068-2-1,2,30 and railway EMC standard EN 50121-3-2. It also complies also with Railway Certification EN 50155 (IEC 60571). The MKZI20 series offer a highly reliable solution for critical applications in railway systems, battery-
powered equipment, and measure instrumentation.

Other features include:

  • Industrial Standard 2″X1″ package
  • Ultra-wide input ranges 9-36VDC, 18-75VDC, 40-160VDC
  • I/O Isolation 3000VAC with reinforced insulation
  • Operating ambient temperature range of -40℃ to +88.5℃
  • No minimum load requirement
  • Under-voltage, overload, and short circuit protection
  • Remote on/off, output voltage trim
  • Conducted EMI emission EN 55032/11 Class A approved
  • Vibration and shock/bump test EN 61373 approved
  • Cooling, dry and damp heat test IEC/EN 60068-2-1, 2, 30 approved
  • Railway EMC standard EN 50121-3-2 approved
  • Railway certified EN 50155 (IEC60571) approved
  • Fire protection test EN 45545-2 approved
  • UL/cUL/IEC/EN 62368-1(60950-1) safety approval and CE marking
