  1. Project
2 July 2017

Crossrail Liverpool Street Station, London

Liverpool Street Station is being upgraded by Crossrail as part of a £14.8bn (approximately $19bn) Elizabeth Line (formerly Crossrail) project in London, UK.
Crossrail’s Liverpool Street station will be located between the existing Liverpool Street and Moorgate stations in London, UK. Image courtesy of Crossrail Ltd.
The Liverpool Street station will have two entrances and ticket halls at Broadgate and Moorgate. Image courtesy of Crossrail Ltd.
A first of its kind 53m-long permanent sprayed concrete lining cable tunnel is being constructed as part of the project. Image courtesy of Crossrail Ltd.

Liverpool Street

Liverpool Street Station is being upgraded by Crossrail as part of a £14.8bn (approximately $19bn) Elizabeth Line (formerly Crossrail) project in London, UK. To be located between the existing Liverpool Street and Moorgate stations, the station will serve approximately 124,000 passengers a day.

Built in 1874, the existing Liverpool Street station handles approximately 123 million passengers a year and serves the London Underground, national rail services and London Stansted Airport.

Crossrail will provide the new Liverpool Street with direct links to Canary Wharf and Heathrow Airport, as well as provide faster journey times to London’s West End.

The new station will commence operations in December 2018, with trains terminating at Paddington in the west and Abbey Wood in the east.

Liverpool street station details

The new Liverpool Street station will feature two entrance and ticket halls, eastern and western, which will be connected by two 250m-long tunnels.

The eastern ticket hall entrance will link the Broadgate ticket hall to the existing London Underground hall, while the western ticket hall will be built at Moorgate underground station.

The upgraded station will have enhanced connectivity with London Underground stations, Stansted Airport and national rail services. It is expected to reduce the journey times to Canary Wharf, Abbey Wood, and Paddington to six, 18, and ten minutes, respectively.

Public spaces will also be expanded to enhance passenger flow, while ambient waiting spaces will be provided for vehicles.

Crossrail’s Liverpool Street station design

Liverpool Street station features grooved and angled ceilings that resemble the traditional pin-striped suits of city workers. The design includes a shallow, geometric folded ceiling plane formed by ribbed pre-cast concrete soffit panels instead of conventional low-flat ceilings.

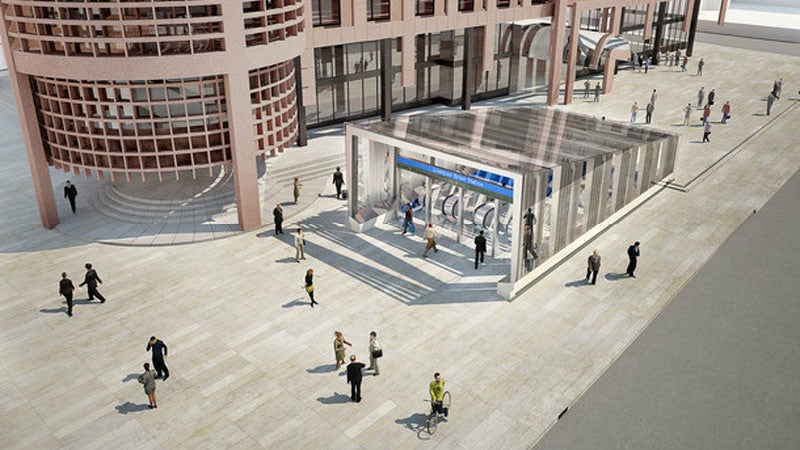

To access the underground eastern ticket hall at Broadgate, passengers will enter a 5m glazed canopy situated in an open pedestrian plaza. Natural light will enter from below ground during the day, while at night the canopy will act as a lantern with artificial lighting from inside shining out of the glazed entrance.

An angular portal entrance, framed by bold blue-coloured glass, will welcome passengers into the western ticket hall. Walls will be decorated with glass and acoustic panels made from perforated enamel steel, whereas terrazzo will be used for the floors.

Crossrail Liverpool Street station construction

At the Broadgate ticket hall, Crossrail has excavated the station box to a depth of 23m below ground level, and constructed an access passage linking the ticket hall to the London Underground station.

The project further includes the construction of a 40m-deep shaft at Blomfield Street and a 42m-deep shaft below the Finsbury Circus Gardens.

The Moorgate ticket hall construction includes the excavation of a 55m-deep shaft with reinforced concrete panels to form a box below ground.

A new 53m-long sprayed concrete lining cable tunnel, the first of its type, will be constructed 5m below ground to connect the new substation.

The construction of station platforms and ticket hall structures was completed by October 2016. Other works include the installation of glass-fibre reinforced concrete cladding for the platforms, preparation work to commence track-laying, installation of a floating track slab in the Barbican tunnels, expanding the internal structure of the Moorgate shaft, and the completion of the Blomfield Box structure.

"The stations, platforms and tunnels will be fitted with key infrastructure and architectural finishes in 2017."

The stations, platforms and tunnels will be fitted with key infrastructure and architectural finishes in 2017. Major works include laying 42km of track, and the installation of critical railway components such as platform screen doors, ventilation fans, cables, walkways, power, and signalling and communication systems.

Key players involved

Laing O’Rourke Construction was awarded the main construction works contract for the Liverpool Street station, while the BAM Nuttall Kier (BNK) joint venture was contracted to perform advance works, including piling and walls.

Vinci Construction will construct the Bloomfield Street shaft. The BBMV Joint Venture (comprising Balfour Beatty, ALPINE BeMo Tunnelling, Morgan Sindall, and VINCI Construction) was awarded a €275m ($358m) contract for construction of the station tunnels.

Wilkinson Eyre and Mott MacDonald were engaged to provide detailed designs for the station with assistance from London Bridge Associates.

Arup and Laing O’Rourke engaged Hawkins Brown to complete the detailed design and construction of the new station and the public realm. Hawkins Brown was supported by AVR London.
