AUTRONIC, located in Sachsenheim, South Germany, is one of Europe’s leading suppliers of power converters for up to 500W in the transportation systems sector, offering customer-specific DC-DC and AC-DC solutions.

Standard and customer-specific DC / DC and AC / DC converters

AUTRONIC offers a large range of standard and customer-specific DC / DC, AC / DC converters up to 500W and electronic manufacturer services. AUTRONIC DC-DC converters are ideal for industrial applications, control and monitoring systems, portable instruments, data acquisition devices, mobile applications for the transport sector, rugged environmental conditions, and areas where reliability is important.

Converter with ultra-wide input and output power up to 30W

The HFBC30 with an output power of up to 30W (33W instead 35W peak) offers an ultra-wide input voltage range between 14.4VDC and 154VDC. These converters are suitable for all European on-board network voltages on rolling stock (24V, 36V, 72V and 110V) including the + / – 40% tolerance range requested under EN 50155 (including S2).

Converter with ultra-wide input and output power up to 60W

The HFBC60 with an output power of up to 60W offers an ultra-wide input voltage range between 14.4VDC and 154VDC. These converters are suitable for all European on-board network voltages on rolling stock (24V, 36V, 72V and 110V), including the + / – 40% tolerance range requested under EN 50155 (including S2).

Autronic offers a large range of standard and customer-specific DC / DC and AC / DC converters up to 500W and electronic manufacturer services.
ACR45 railway converter regarding EN50155 with output power up to 60W.
HFBC30 converter with ultra-wide input for railway application.
ACR150 for compactPCI is a converter for compactPCI with quad output for railway applications.
AVP / Ks is a compact, encapsulated converter for rough applications.

Converter for standard 19in Euro rack size and output power up to 60W

The brand new HEBC60 for standard Euro rack size 19in with an output power of up to 60W offers an ultra-wide input voltage range between 14.4VDC and 154VDC. These converters are suitable for all European on-board network voltages on rolling stock (24V, 36V, 72V and 110V), including the + / – 40% tolerance range requested under EN 50155 (including S2).

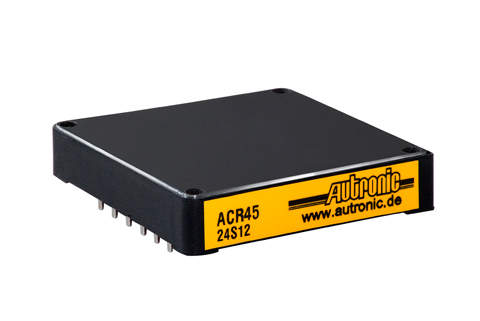

Compact and powerful DC / DC converter with up to 60W output power

The ACR45 (up to 60W) DC / DC converters for PCB mounting offer a wide range of input voltages in compliance with EN 50155. The ACR45 is encapsulated, shock and vibration resistant regarding EN 61373:1999 Cat 1B and has an extended temperature range between –40°C and +85°C. It is suitable for railway and transportation systems, info displays, lighting, control systems, passenger entertainment, and supply systems.

Compact and powerful DC / DC converter with up to 150W output power

AUTRONIC present their brand new series ACR150 with an output power of up to 150W. These DC / DC converters for PCB mounting offer a wide range of input voltages in compliance with EN 50155. The ACR150 is shock and vibration resistant encapsulated and has an extended temperature range between –40°C and +85°C. It is suitable for rough and powerful applications in industry, railway and transportation systems.

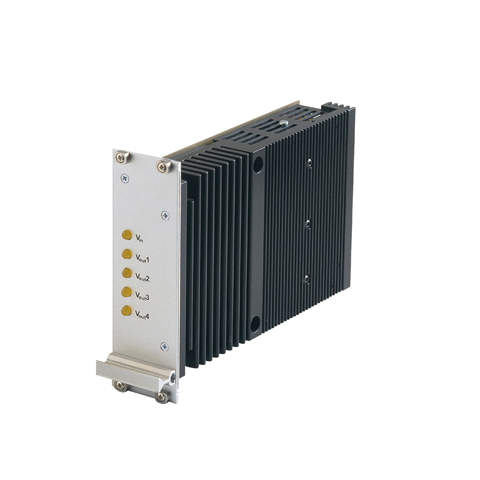

Converter for compactPCI

The brand new railway-compatible ACR150-4DB / KE series for CompactPCI has a width of only 8HP and the 3U devices have an output power of 100W. The railway-compatible quad converters are equipped with the output voltages +3.3V, +5V, +12V and -12V. They are on offer as a standard with the input voltage of 24V and 110V in accordance with EN 50155 (class S2). Other inputs are available on request.

AVP / Ks compact DC / DC converter

There are two different versions of this compact DC-DC converter available, which can be mounted for space-saving on case walls or on PCB.

The offered output voltages are 3.3V, 5V, 12V, 15V, 24V and 30V. The modules show filtering at the input acc. to EN 55022 (conducted), class B. This makes the converter suitable for high requirement railway and industry applications.

Powerful and reliable AVP / KEP and KEP-F converter with output power up to 200W

The AVP / KEP series has an output power of up to 200W. The converters are ideal for applications where power is needed and are available for 19in rack and chassis mounting.

A feature of AUTRONIC DC-DC converters is the wide input voltage ranges (+ / – 40%) for the nominal input voltages 24V, 36V, 72V and 110V. The single converter is available with the following output voltages: 12V, 15V and 24V. The converters can be used in the temperature range of -40 to +85°C.
