ThermOmegaTech®

Freeze Protection for Locomotives and Passenger Coaches

Address
353 Ivyland Road,
Warminster,
18974-2205,
Pennsylvania,
United States of America
Phone
More links
Rail products

ThermOmegaTech® is an industry leader in freeze protection valves for passenger coaches and locomotives.

We design and manufacture advanced, reliable, and compact self-actuating valves for the railway industry.

Our high-quality control valve and freeze protection solutions are designed to protect critical rail equipment in adverse conditions.

The GURU® DL 2.1 Plug is a stainless-steel cartridge that releases itself from its body at a pre-set water temperature (35°F or 40°F), rather than being forced out by the tremendous pressure of expanding ice.
The GURU® Magnum Plug is a self-operating thermostatic drain valve that responds to engine coolant temperature and will pop open and drain when coolant reaches the set point (35°F or 40°F).
The GURU® CHS Valve protects Gardner Denver water-cooled compressors from freeze damage. The valve acts as a vent to drain water before damaging the unit. It inserts into the compressor head and allows for a quick drain time.

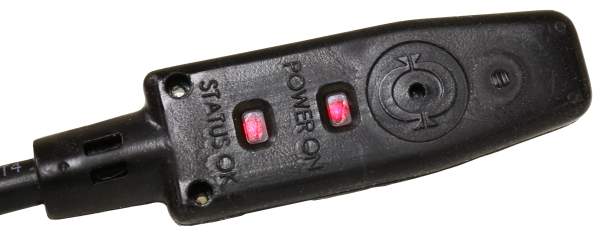

ThermOmegaTech’s GURU® PC Valve is self-contained and drains water bearing systems automatically before freeze damage can occur by monitoring ambient temperatures.
The GURU PC Valve only needs a standard 74VDC three-prong grounded plug; no air connections are required.
The heater assembly allows the GURU PC valve to heat up and close quickly as soon as car heat is turned on again. This allows refilling of the water system and getting the passenger car back into service as quickly as possible.
ThermOmegaTech’s 1in GURU® PC Valve operates the same as the 0.75in GURU PC but has a larger port to allow quicker drain time.

Self-actuated temperature control valves

We demonstrate our leadership and commitment to producing high-quality temperature control solutions by:

  • Ensuring superior quality
  • Solving problems for our customers through innovative engineering and design
  • Bringing responsiveness, flexibility, and reliability to everything we do

We are industry leaders in innovative temperature control valve technology, and our decades of experience and knowledge are evident in our full suite of products and custom engineered solutions.

Freeze protection for locomotives

The GURU® Plug line of valves (GURU® DL2.1 CH & CHS, Magnum GURU®, and GURU® DL 2.1) are water-sensing, self-operating, thermostatic drain valves that respond to engine coolant temperature.

When the locomotive is shutdown and cooling water reaches the temperature set point of the valve (35°F or 40°F / 1.7°C or 4.5°C), the plug will snap open and drain the locomotive cooling system before any freeze damage occurs.

The Magnum GURU® Plug is a higher discharge capacity version of the standard GURU® Plug, providing a full 1.2in (30.48mm) bore to rapidly drain a locomotive.

Freeze protection for rail passenger coaches

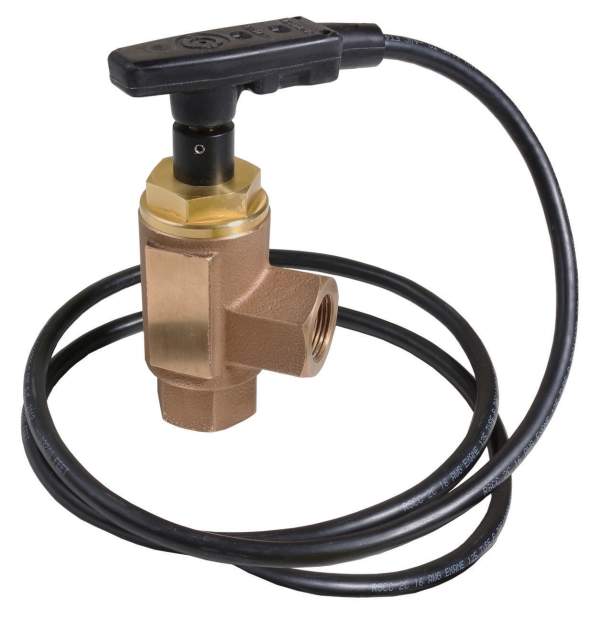

The GURU PC® is a self-operating, thermostatic valve that automatically drains passenger coach water-bearing systems, typically for on-board restrooms and toilets, before freeze damage can occur.

Operating with no outside power, this self-modulating valve is designed to rapidly drain the system once an ambient temperature of 35°F (1.7°C) is detected. The valves are NSF 61/372 certified and shock and vibration tested by a third-party.

An optional heater assembly is available to rapidly heat and close the valve after it has drained the system, allowing the water to be refilled and for the passenger coach to get back into service promptly.

Only a standard 120VAC / 74VDC or 230VAC three-prong, grounded plug or wiring is needed, and no air connections are required.

Accessories for locomotive control valves

Additional tools are available to optimise the GURU® Plug’s performance.

The GURU® Flag and Clip tool prevents the GURU® Plug from dumping while refilling the locomotive’s cooling system after activation.

The magnetic GURU® Flag attaches to the outer wall of the locomotive to serve as a visible indicator that the valve is disarmed.

We recommend servicing the GURU® Plug every 18 to 24 months using the GURU® Rebuild Program in order to maintain optimal performance.

About ThermOmegaTech

ThermOmegaTech® has been designing and manufacturing thermostatic temperature control valve technology for more than 35 years.

Founded in 1983, ThermOmegaTech® is a privately held organisation with a 40,000ft² manufacturing and office facility located near Philadelphia, Pennsylvania, US.

We provide innovative solutions for a wide range of applications, including freeze protection, scald protection, mixing and diverting, and thermal relief, and more.

Key industries we serve include railway, commercial plumbing, industrial, and aerospace and defence.

All manufacturing, calibration, quality control, and testing are performed in-house, ensuring that high-quality products leave our facility. This gives us the flexibility to adapt to unique project needs and provide our clients with exceptional custom products.

ThermOmegaTech® is ISO 9001 certified and our products are distributed and used worldwide.

We conduct business in a straightforward way, with honesty and integrity at its core. We are highly skilled problem solvers and engineers, who are committed to finding the best solution for our client’s needs. We take pride in our history, longevity, and work ethic.

H3 Hybrid Shunting Locomotive Project

The H3 Hybrid Shunting Locomotive Project involves the development and testing of five new-generation locomotives based on hybrid technology (electric batteries and/or generators).
