Cambium Networks

Railway Network Wireless Connectivity Solutions

3800 Golf Road , Suite 360, Rolling Meadows,IL 60008, United States of America



Cambium Networks provides end-to-end Cloud-based solutions for reliable, scalable and secure connectivity within the railway industry.

Solutions are designed to allow service providers, industrial and government rail network operators to streamline operations.

Cambium Networks is dedicated to continuously innovating wireless access, which is proven by the company’s millions of radios that have benefitted transport networks worldwide.

End-to-end coverage to manage any railway application, data load or environment

Cambium Networks offers a range of fixed wireless broadband point-to-point (PTP) and point-to-multipoint (PMP) solutions.

Platforms are managed by Cloud-based software and provide rail transportation with powerful communications networks, reaching users as far away as 200km in all environments.

PTP and PMP platforms also allow clients to manage network Wi-Fi infrastructure through end-to-end visibility and actionable analytics.

Connectivity solutions for freight and rail transportation

Freight rail operators are connecting more remote sensors and cameras with their private wireless communications to improve performance and increase safety. These networks provide consistent and reliable connectivity as a cost-effective alternative to leased lines.

Wireless technology is available to provide connectivity for video, voice, email and data traffic, as well as supervisory control and data acquisition (SCADA) from sensors and control points through a single all-IP network with complete centralised administration.

Cambium Networks wireless platforms have been successfully used across positive train control (PTC), centralised control, and advanced autonomous applications.

Platforms have been tested across transport for SCADA and process control data, successful remote management, video surveillance and voice services. Temporary communications, right of way monitoring and connectivity are also supported.

Solutions are suitable for use with indoor and outdoor 802.11ac Wave 2 Wi-Fi at offices and field locations.

Solutions for wireless connectivity and distribution automation for railways

Cambium Networks provides the cnReach™ solution to deliver cost-effective narrowband wireless connectivity and maintain distribution automation, switch and circuit control at substations, as well as SCADA telemetry.

cnReach allows operators to make use of machine-to-machine (M2M) technology, SCADA communication and a range of Industrial Internet of Things (IIoT) applications to enhance connectivity.

The platform helps operators perform phased migration to the secure, efficient and scalable all-IP network with the ability to support a number of serial or IP communications.

Enterprises can monitor the performance of their network, respond to alarms and perform configuration changes using the centralised cnMaestro network management interface, which works in collaboration with Cambium Networks products.

The cnReach platform is available in 220MHz, 450MHz, 700MHz, and 900MHz licensed and unlicensed frequency bands. The same module is suitable for use in PTP, PMP and relay configurations. A dual-radio option is available as an innovative back-to-back repeater.

An extensive I/O features two ethernet and serial ports with incorporated general purpose analogue / digital interfaces. It has access point synchronisation, as well as adaptive modulation.

Long-range high-capacity point-to-point backhaul for railway networks

Cambium Networks’ PTP 670 makes use of advanced spectral efficiency and reliability, as well as high-capacity multipoint distribution. The systems allow operators to handle railway connectivity needs with security and reliability at up to 450Mbps system throughput.

PTP 670 enables multiple nodes in rail maps to be connected with one main radio, creating new models that can deliver quick deployment, simple planning and a rapid return on investment.

Systems are designed for a variety of railway applications, including video surveillance backhaul, last-mile access and network redundancy. The solution is also ideal for long-term evolution (LTE), macro-cell, and small-cell backhaul.

Wireless backhaul technology used on the platform offers optimum PTP and high-capacity multipoint connectivity. It features 4.9GHz to 6.05GHz frequencies, with a range of channels, including 5MHz, 10MHz, 15MHz, 20MHz, 30MHz, 40MHz, and 45MHz. The PTP 670 complies with FIPS 197, 1588v2, IPv6 and IP66/67 industry standards.

Solutions for simplified data transfer for rail networks and operators

Wireless technology can be deployed in freight yards, along the right of way, and at strategic points along railways without interrupting day-to-day schedules and operations across the network. This helps minimise the impact on business caused by the cost of delays and cancellations.

It is non-disruptive to existing operations, allowing freight trains to keep moving. The communications network can be tested and cut over to a wireless IP infrastructure according to the individual operation.

About Cambium Networks

Cambium Networks solutions increase visibility for network and intelligent traffic control, which delivers first-rate end-to-end coverage for enhanced management of applications, data loads, and environments even in the most inaccessible locations.

The company connects the railway industry with opportunities created by the Internet of Things, including growing bandwidth consumption, video streaming and new data. Solutions are designed to develop along with evolving technologies and ensure that everything is within reach.

Fill out the enquiry form or follow the links in the contact details to learn more about Cambium Networks wireless connectivity solutions for rail transportation.

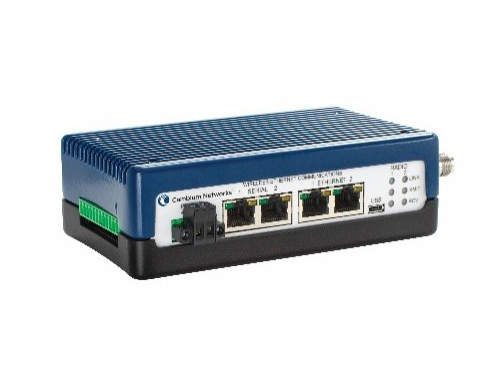

cnReach N500

The Cambium Networks cnReach solution is used in outdoor infrastructure operations to transport data collected from remote sensors for process monitoring and control to the operations centre to help real-time automated decision making, as well as ongoing analytics.

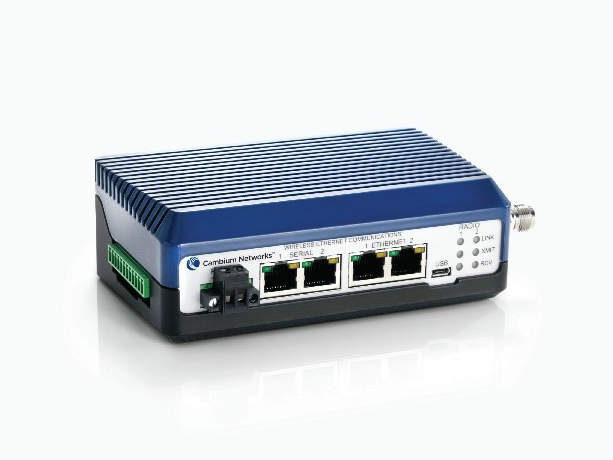

cnReach N500 I/O Expander

The cnReach I/O expander is used to provide additional I/O for broadband and narrowband networks to meet process control and instrumentation application requirements.

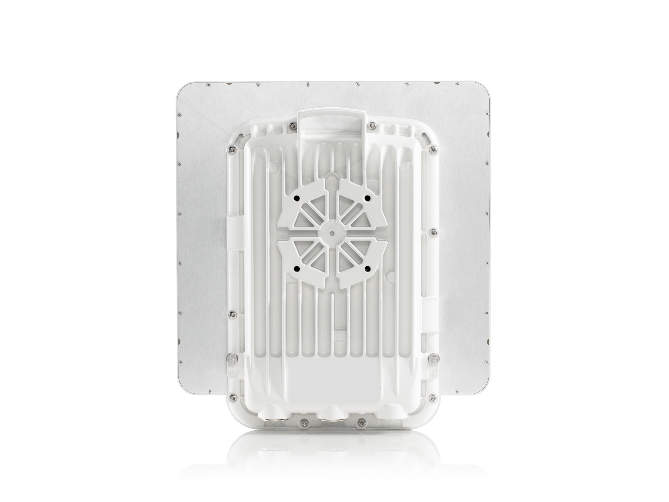

Point-to-Point (PTP) 670

PTP 670 systems provide 4.9GHz to 6.05GHz, multiband flexibility in a single radio and operate in channels from 5MHz to 45MHz providing the ability to deploy in PTP topologies, as well as high-capacity multipoint (HCMP) applications.

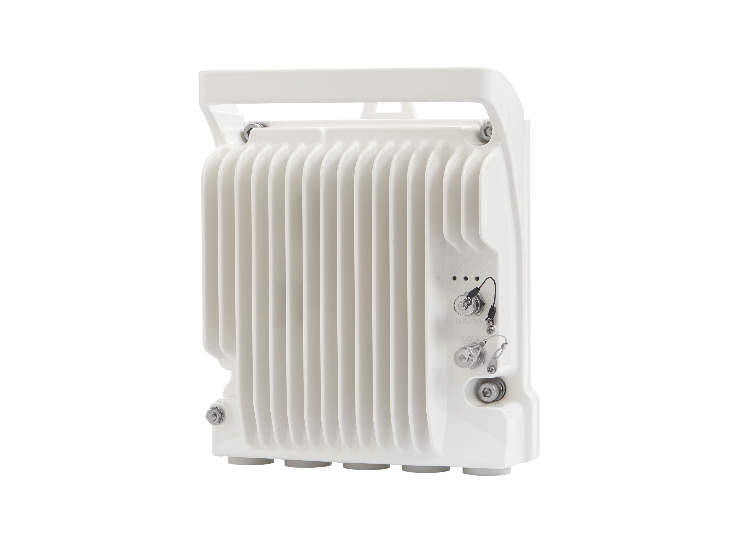

Point-to-Point (PTP) 820C

The PTP 820C features dual-core functionality, which allows the system to operate up to 2Gbps through software upgrades. This removes the need for network operators to perform upgrades or a complete system overhaul for higher gigabit capacity.
