  1. Project
7 April 2014

Perris Valley Line Extension, Southern California

The Riverside County Transportation Commission (RCTC) began construction of the Perris Valley rail line extension project in Southern California in February 2014.

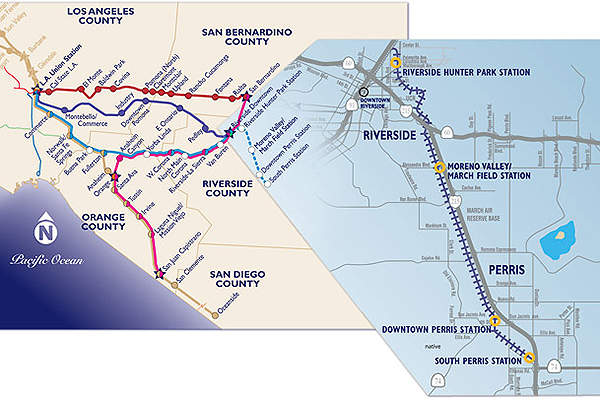

The Perris Valley Line extension includes construction of four new stations. Image courtesy of Riverside County Transportation Commission (RCTC).

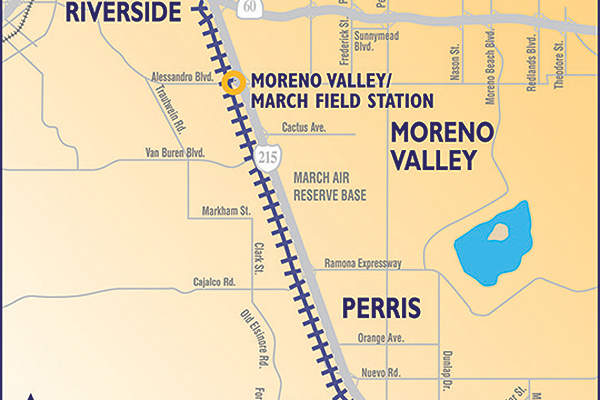

The new Perris Valley extension line will be connected by Line 91 to commute on to other counties. Image courtesy of Riverside County Transportation Commission (RCTC).

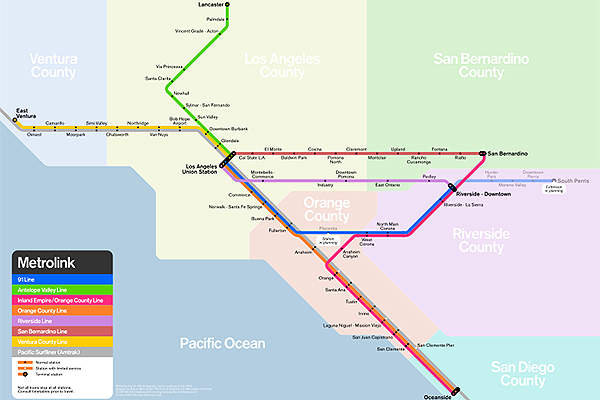

The Perris Valley Line extension is the first extension of Metrolink service since 1994. Image courtesy of the Port of Authority.

perris-valley-line-southern-california

The Riverside County Transportation Commission (RCTC) began construction of the Perris Valley rail line extension project in Southern California in February 2014. The project includes expansion of the Metrolink’s existing 91 commuter line by up to 24 miles (38.6km) between Downtown Riverside and South Perris. The extension will also include addition of four new stations at Riverside Hunter Park, March Field, Downtown Perris and South Perris.

The Perris Valley line is expected to carry more than 4,000 passengers in a day upon completion of the expansion in December 2015.

Project background and benefits of extending the Perris Valley railway line

"RCTC formally initiated the Perris Valley rail line extension planning in 2002 and conducted six public meetings for the same during the year."

RCTC formally initiated the Perris Valley rail line extension planning in 2002 and conducted six public meetings for the same during the year. It also conducted alternatives analysis in association with Federal Transit Administration (FTA) in 2004 to evaluate transit options. RCTC prepared an Environmental Assessment (EA) in 2004 to obtain FTA funding qualification for the extension project. The FTA approved the Perris Valley rail line extension project under small starts project development in December 2007.

RCTC conducted further supplemental environmental assessment (SEA) in 2009 and released the Draft SEA for public comment in 2010. The project faced litigation under the California Environmental Quality Act (CEQA), which was later resolved through a settlement in June 2013.

The Perris Valley rail line extension project finally took off with the receipt of FTA grant in December 2013.

The extended rail line will provide improved and alternate mobility without traffic jams as the tracks will run parallel to Interstate 215. The new line will connect to the 91 Line taking the commuters through Riverside County, Orange County and on to Los Angeles County. It will provide better access to the residents of Menifee, Murrieta, Temecula, San Jacinto, Hemet, Lake Elsinore and Wildomar.

The construction of four new rail stations along the line is expected to enhance the business through new investments.

The extension is expected to create employment opportunities to over 4,000 people during the construction phase.

Construction and infrastructure

"Ames Construction was awarded a $148.2m contract for the construction of the Perris Valley line."

Ames Construction was awarded a $148.2m contract for the construction of the Perris Valley line. Construction of the extension line began in February 2014. The initial phase of construction started between Eucalyptus Avenue and Perris located near the Interstate 215.

The initial phase of construction includes double-tracking about nine miles of the route, construction of new stations, as well as improving rail crossings. It further includes installation of infrastructure and communications systems, and drainage and ballast works. It also includes rehabilitation and construction of railway tracks.

The extension line will be equipped with Metrolink’s Positive Train Control System that will provide protection against train collisions. The new line will offer more safety and include flashing warning devices, gates, raised centre medians, striping, signs and pavement markings. Pedestrian crosswalks will be built at two railroad crossings along the extension. The extension line will also have 18 upgraded at-grade crossings.

The Riverside Hunter Park station will feature 344 parking spaces, the March Field station will have 316, the Downtown Perris station will have 392, and the South Perris station will have 730 parking spaces.

Financing for the Perris Valley line extension

The total estimated investment for the construction of the extension is $248.3m, which will be funded through a combination of federal, state and local funds. The Federal Transit Administration granted $75m for the construction of the project in December 2013. The other sources of funding include Riverside County’s voter-approved Measure A programme, and an additional funding from the state of California.
