  1. Project
25 July 2016

Warsaw-Radom Line Modernisation

The modernisation of railway line number eight section between Warsaw Okecie and Radom in Southern Poland was initiated in July 2013.

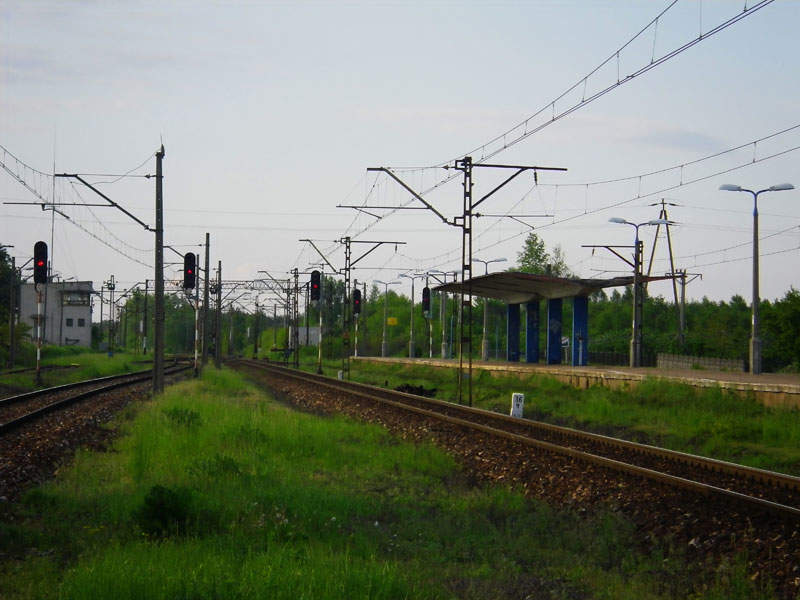

The railway line modernisation between Warsaw Okecie and Radom was initiated in 2013. Image courtesy of Cezary p via Wikipedia.
Trakcja PRKiI signed an agreement with PKP Polskie Linie Kolejowe to provide modernisation works on the 27km section from Warsaw Okecie to Czachówek. Image courtesy of Trakcja PRKiI.
Czachówek Południowy train station upgrade is a part of the modernisation. Image courtesy of Bonvol via Wikipedia.

Warsaw-Radom

The modernisation of railway line number eight section between Warsaw Okecie and Radom in Southern Poland was initiated in July 2013. It was aimed at reducing the travel time between Warsaw and Radom, enhance safety, increase the capacity of the line and enable trains to run at speeds up to 160km/h.

The railway line between Warsaw and Radom currently takes more than two hours to travel for the 92.45km distance. Upon completion of modernisation of the line by the second quarter of 2017, the journey times are expected to reduce by half. The modernisation project is being managed by PKP Polskie Linie Kolejowe.

Warsaw to Radom railway line modernisation project scope

The railway line modernisation includes construction of three new stations at Warszawa Okęcie, Piaseczno and Czachówek, and four new stations at Chynów, Warka, Dobieszyn and Radom. It includes construction of a second track on a single track section between Warka and Radom.

"The modernisation project is being managed by PKP Polskie Linie Kolejowe."

It further includes redevelopment of 27km of railway tracks, 13 railway crossings and 75km of overhead line system.

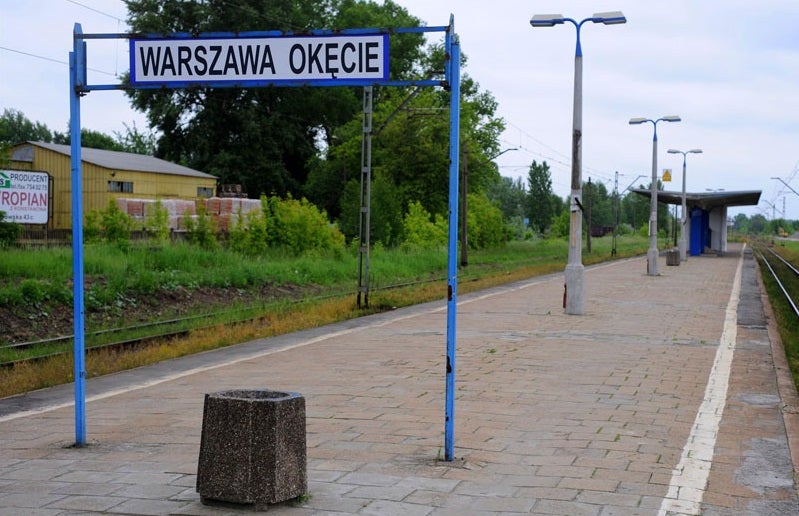

The railway line modernisation works include upgrading the Warszawa Okęcie, Piaseczno and Czachówek Południowy railway stations, and construction of ten platforms and pedestrian crossings. New platform shelters and passenger information machines will be installed as part of the upgrade.

Seven viaducts, four railway bridges and 16 culverts will be built as part of the modernisation. Other works include drainage and power installations.

The Warsaw to Czachówek line will be constructed with modern and disabled-friendly infrastructure.

Warsaw-Radom railway line modernisation construction

Construction on the railway line modernisation began in July 2013. The modernisation from the Warszawa Okęcie station and Piaseczno to Czachówka includes demolition and building of tracks on the whole segment.

The reconstruction of Piaseczno station is expected to be completed by the second quarter of 2017.

Contractors involved with the Warsaw-Radom railway line modernisation

The consortium led by Thales in association with Trakce was awarded a €76m ($79.62m) contract to upgrade train management systems, including signalling and supervision, on the Warsaw-Radom railway line in April 2013. The scope of the contract also includes providing design and construction of systems including control centres, maintenance and diagnostic centres, interlocking systems and axle counters, telecommunications, passenger information systems, and CCTV.

Trakcja PRKiI was awarded a contract worth more than zl460m ($105.78m) to provide modernisation works on the 27km section from Warsaw Okecie to Czachówek, a part of the Warsaw-Radom railway line, in April 2014. The works are planned to be completed in 20 months.

Financing for the Warsaw-Radom railway line modernisation

The modernisation project is estimated to cost €428.7m ($470.93m). The European Union, under the EU Cohesion Fund (CF), is funding €239.4m ($262.98m) for the project. The rest of the investment is being provided by PKP Polskie Linie Kolejowe under a public-private partnership.
