Lagos Rail Mass Transit System

Nigeria’s largest city, Lagos, is constructing a light rail system under a public-private partnership (PPP).

Type
Urban rapid rail transit system
Location
Lagos, Nigeria
Population
Over 17 million
Lines
Two (Red and Blue lines)
Length
Red line: 30km Blue line: 27km
Gauge
Standard
Routes
Red line: Marina to Agbado Blue line: Okokomaiko to Marina
Estimated Investment
Red Line: $650m Blue Line: $750m
Completion
2011
Developer
LAMATA

Nigeria’s largest city, Lagos, is constructing a light rail system under a public-private partnership (PPP). The Lagos Rail Mass Transit System project is sponsored by the Lagos State Government (LSG) and being developed by Lagos Metropolitan Area Transport Authority (LAMATA) on behalf of LSG.

LAMATA has proposed seven lines in the network: Red, Blue, Green, Yellow, Purple, Brown and Orange.

China Civil Engineering Construction Company (CCECC) was appointed as the contractor for the construction of the first line (Blue). The contract includes the fundamental design and development of the rail infrastructure.

CCECC is constructing the Blue line in two phases. The first phase includes the National Theatre to Mile 2 section and the second involves the Mile 2 to Okokomaiko section.

Construction of the Blue line was initially expected to be completed by 2011 but was delayed to 2020 due to funding issues. Alstom also partnered with LAMATA for the completion of Blue line.

Lagos rail mass transit system project

The first two lines of the urban light rail project are estimated to cost $1.4bn. The Red line will be 30km long and will run between Marina and Agbado. The Blue line will be 27km long, connecting Okokomaiko to Marina.

“LAMATA has proposed seven lines in the Lagos network.”

The Blue line will cost $1.2bn and is being funded entirely by the Lagos State Government (LSG). In May 2012, the Lagos government commenced negotiations with potential investors for the operation and maintenance of the line.

The 30km-long Red line will use the existing Nigeria Railway Corporation corridor, constructed through a concession arrangement. The construction of the line will commence in 2021.

The concession contract will be for the operation and maintenance of the lines for 25 years. The scope of work for the concessionaire will also include design and construction of the infrastructure associated with the performance and support of the lines.

The transaction adviser for the Red line is Dar Al-Handasah. CPCS Transcom is the transaction adviser for the Blue line. The two transaction advisers conducted feasibility studies and conceptual design work for their respective lines.

Line routes of Lagos rail mass transit system

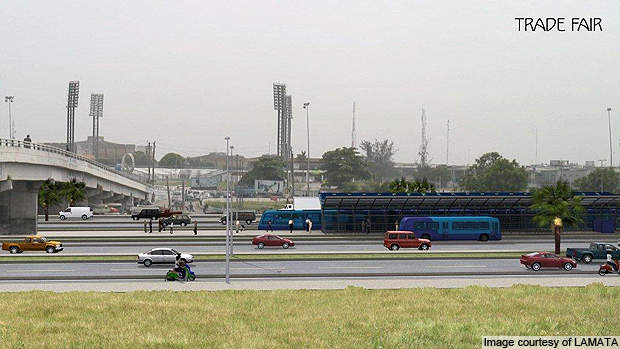

The Blue line starts at Marina station and runs along Ebute Ero and Iddo stations, same as the Red line. From Iddo, the Blue line running on an elevated platform moves along the National Theatre station. It makes a descent at Iganmu to join the expanded Lagos-Badagry Expressway. The expansion, conceived to ease link between Nigeria and neighbouring West African states, Alaba, Mile 2, Festac, Alakija, Trade Fair station, Volkswagen station, LASU, finally reaches the Okokomaiko station where it ends. One of the two bridges being built for the Blue line is at Mile 2.

“CCECC won the construction contract for the Blue line. “

The construction of a sea-crossing bridge section of the Blue line was completed by CCECC in December 2019.

The Red line begins as a double line at Marina and runs through Ebute Ero ending at Iddo. It then runs northwards via a reverse curve to reach Ebute Metta. The line goes straight to Yaba, Mushin and Oshodi before reaching Ikeja. At the Ikeja station, the Red line is linked to the line from the international and domestic airport terminal. From Ikeja, a single line will run to the airport terminals. The Red line moves as a double line further northwards from Ikeja to pass through Agege, Iju and finally reaches Agbado.

The passenger railway service run by Nigerian Railway Corporation (NRC) from the north will terminate at the Agbado interchange. Passengers travelling to Marina using NRC services will change train at Agbado and continue their journey on the Red line. Some of the Red line section from Agbado will run on NRC corridor tracks.

Island-style platforms

The Red and Blue lines will have 13 stations each. Three stations in the south end of the Red line will be shared with the Blue line. The two railway lines will, therefore, comprise 23 stations in total.

The stations will have island-style platforms and commuter payment systems. Public address and electronic information screens will be installed in each station. The Ebute Ero station will also have an escalator.

Several rail crossings with elevated road structures will be built along the lines. A total of 35 pedestrian bridges will be constructed over the Nigerian Railway Corridor. Cable ducts and walkways, in addition to drainage system with two walls, will be built along different sections of the lines.

Between Marina and Iddo stations, a combined 5km viaduct rail over the road and a cable-stay bridge will be built, linking the Red and Blue lines.

Other infrastructures being built as part of the project include stations; signalling, control and communications (SC&C) systems; supervisory control and data acquisition (SCADA) systems; depot and workshop facilities; an operations control centre and a training facility for train drivers.

“The Blue line will be 27km long, connecting Okokomaiko to Marina.”

Rolling stock

The urban rail network is anticipated to operate with 12-car trains, with more cars added according to demand. The maximum number of cars will, however, be limited to 16 a train. The 16-car trains will be 352m long and12-car trains 264m long. The cars will accommodate 300 passengers each.

Signalling and communications

The light rail system will employ the latest train authorisation systems, automatic train protection (ATP) and in-cab signalling in all of its lines. The wayside equipment will be minimised so that the drivers will not exceed the authorised movement limits.

The ATP will help to maintain the speed restrictions set on the lines. To ensure that the signalling is available during power cuts, a backup power system will be fitted.
