Compact M12 8-Port Managed Switch Tough Railway Application

The MAGBES series is designed for use on trains, buses, and trucks that operate in dusty environments with high vibrations.

The compact switch comes with 8 ports on M12 and can be installed with DIN-Rail or Flange mounting.

The new MAGBES F211M version is the perfect solution for installation on vehicles and comes with 8 ports on M12 (Xcoded, each port 10/100/1000Mbit). All connectors are accessible from one side for easy installation.

Despite the compact size, the M12 connector arrangement allows quick and secure cable connections. Even the power connector is on the same side. On request, it can be moved to another location.

Internal wiring effort has been reduced to a bare minimum to ensure the trouble-free operation under shock and vibration conditions. The switch can be installed on a DIN rail or with flange mounting.

With this arrangement, the MAGBES solution meets all requirements for an application within a vehicle or other rugged environment.

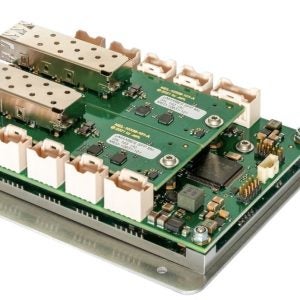

The MAGBES product family consist of several versions and models, meeting all your needs. The switches are extremely compact and come in several housing options, even as an open-frame board solution to install and operate in an existing compartment.

For IP67 solutions or defense applications, MPL also provides solutions with MIL 38999 connectors. The supply power is 5-36VDC and the power consumption is under all conditions below 8W.

Optionally, the MAGBES can be equipped with a redundant power input or different supply power. The standard temperature range of the managed switch is from -20°C to 60°C and optional from -40°C to 85°C. Variations of the of the 8-port MAGBES switch come with one to four fiber ports.

The MAGBES product line support switch features:

  • Quality of service
  • VLAN
  • Rapid spanning tree
  • Snooping

To adjust the switch settings the MAGBES comes with an easy to operate web interface or Telnet.

The MAGBES can also be operated unmanaged. The MAGBES is 100% designed and produced by MPL AG in Switzerland.

The switch is designed to meet IEC60945, EN50155, CE, and MIL-STD-810 standards like all other networking and embedded computer products from MPL AG.

For more specific information, fill out the enquiry form.
