Tunis Light Rail Development

The most northerly African country, the Tunisian Republic (Tunisia) has a population of around 10 million. This is mainl

Population - City
Approx. 800,000 (2007)
Gauge
1,435mm
Operator
Les Société des Transports de Tunis (Transtu)
Lines opened
TGM – 1872; Métro – 1985
System length - Metro
32.6km (20.3 miles)
System length - TGM
18.7km (11.7 miles)
Tram lines
5
Tram stops (total by line)
70
Suburban line (TGM)
1
Depots
Métro - 2; TGM - 1
Power supply
750V dc overhead supply
Rolling stock suppliers
Düwag /MAN - TGM
Düwag (Siemens) - Métro
Alstom - Métro
New vehicle order
Alstom Citadis type 302
Introduced
09/2007
Orders
30 + 9
Dimensions (single set)
2.4mx 31.6m
Capacity (single set)
58 seated + 276 standing
Five-line light rail system began in 1985
Central and metropolitan areas experiencing high population growth
New stock introduced low-floor operation in 2007
Modifications for local conditions on new stock
Citadis operation over existing infrastructure

The most northerly African country, the Tunisian Republic (Tunisia) has a population of around 10 million. This is mainly concentrated around the coastline in the north and east, with well over 10% in the metropolitan area of the capital, Tunis. A French territory for over 70 years that gained full independence in 1956, Tunisia has one of the most diversified and successful economies in Africa.

THE PROJECT

Public transport is overseen by Tunisia’s Ministry of Transport, with constituent bodies operating the various modes. The Société Nationale des Chemins de Fer Tunisiens (SNCFT) has continued development of the heavy rail standard and metre gauge routes, initiated under French control, with the 1,435mm operation centred on Tunis.

“By 1992 there were five light rail lines in operation, representing one of Africa’s most comprehensive urban rail networks.”

An 18.7km electrified double-track suburban line with origins in 1872, the Tunis-Goulette-Marsa (TGM) links the city via a causeway across the Lac de Tunis with its north-eastern suburbs, including resorts and the historic Carthage area.

Tunis is just inland and set on low-lying land around several lakes. The heart of the city, the Medina, has a street pattern that long predates the industrial era or motorised transport. In 2003, the city’s own road and rail public transport modes came together under the jurisdiction of the Société des Transports de Tunis, operating under the Transtu name.

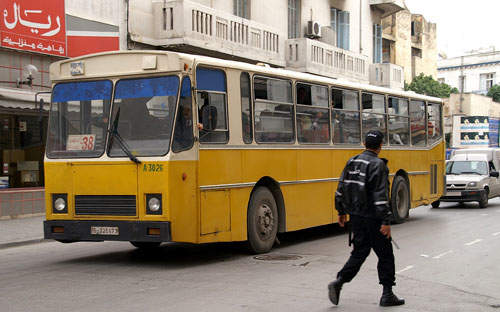

Accounting for almost three quarters of revenue (2006), the company operates 217 bus routes over 6,882km with a fleet of 1,114 vehicles. As with most other large cities, road congestion is a feature of Tunis, although the challenge for public transport is as much about increasing capacity on their already well-used services as it is about stemming the rise in car use.

INFRASTRUCTURE

With the city set for continuing population growth, preliminary studies for light rail, the Métro Léger, began in 1974. A Siemens-led consortium won the contract to create the 1,435mm, overhead supply surface network. Line 1, Tunis Marine (also city terminus for the TGM) to Ben Arous in the south, opened in 1985.

By 1992 there were five lines in operation, representing one of Africa’s most comprehensive urban rail networks. The routes mainly have reserved alignments, with many road crossings. There is interchange with the SNCFT terminus at Place Barcelone, part of the largest concentration of Métro lines from where the network displays a broadly radial pattern.

ROLLING STOCK

Following the lead of German sourcing when the TGM was re-equipped with Düwag -MAN units, the Siemens-led consortium supplied proven technology in the form of 134 bi-directional Düwag 30m units delivered in three batches, in 1985–1998. Running singly or in pairs, these vehicles operate throughout the network.

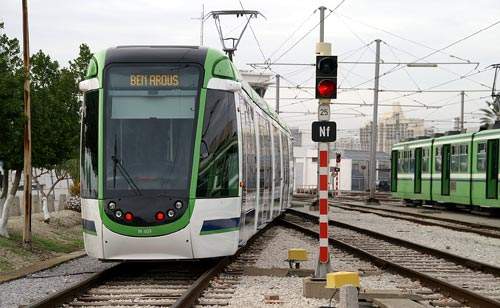

Following a tender of January 2003, in June 2004 an order was placed with Alstom for 30 Citadis type 302 five-unit low-floor sets, the first entering revenue service in September 2007. Supplementing rather than replacing the Düwag units, the initial Citadis fleet assembled at La Rochelle will provide an overall 5% capacity increase on the Métro.

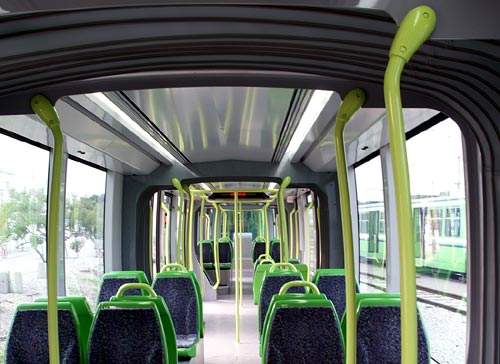

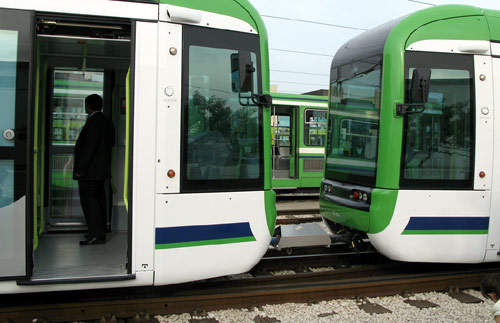

Unusually for Citadis, it will operate over a ‘legacy’ infrastructure rather than being introduced as part of a new integrated project. The uni-directional units will run coupled ‘back-to-back’ to create ten-unit formations with a capacity of 668. The vehicles are modified for local conditions with added dust protection, more heat-resistant roof panels and special window coatings. A welcome addition for passengers over the original Düwag fleet is the incorporation of air conditioning.

“Accounting for almost three quarters of revenue (2006), Transtu operates 217 bus routes over 6,882km with a fleet of 1,114 vehicles.”

SIGNALLING AND COMMUNICATION

In terms of service information, facilities at tram stops are rudimentary compared with European standards, although high service frequency and straightforward routings offset potential problems. Onboard information systems of the Citadis reflect their modernity in contrast with the other Transtu vehicles alongside which they will operate. Information is provided in the official language, Arabic, and the widely spoken French.

THE FUTURE

Scheduled for batch completion in March 2008, the first Citadis trams will be followed by nine ordered in February 2007. Delivery and local certification has met the original targets. It is likely that the Alstom-sourced vehicles will see service beyond the initial allocation to Line 1. Transtu intends to issues tenders for a further 16 comparable vehicles for 2008/9. A project for infrastructure improvements valued at €15m is in hand, with a further €16m allocated to a broad programme for increasing system capacity. Some line modifications are required to accommodate Citadis operation.

Planned extensions include an extra 5km of Line 4 to reach the Mannouba University campus (cost: €32m) and a 6.8km branch from the present Line 1 to d’El Mourouj (cost: €43m).
