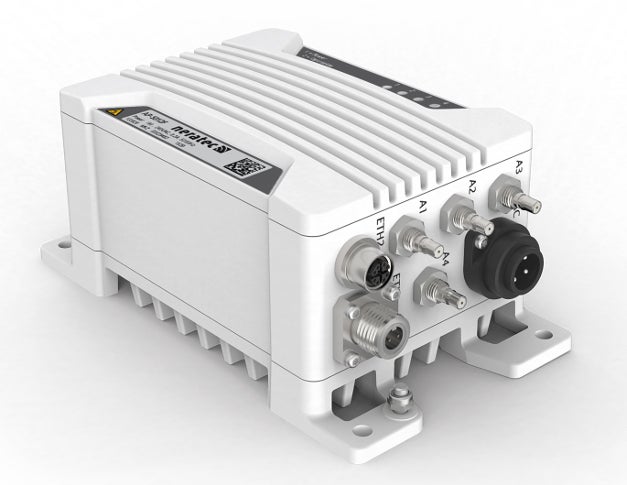

Neratec AP-5312F: Wayside Access Point


Neratec AP-5312F is a robust, high-performance, wireless wayside access point for industry and public transport with integrated optical Ethernet, a 230VAC power supply, and advanced monitoring and radar detection features.

Features of the Neratec AP-5312F include:

  • Based on 802.11 WLAN technology, customised for specific on-board and in-vehicle requirements
  • Separate radio frequency (RF) monitoring interface
  • Supports reliable operation in outdoor radar (DFS) bands
  • 2.4GHz and GHz operations, up to 450Mbps data rate
  • Improved-link, span-optimised transmitter and receiver performance
  • Extended operating temperature range (-40°C to 70°C) and IP66 housing
  • One 1000Base-FX optical Ethernet
  • One 10 / 100 / 1000Base-T Ethernet with M12 connector
  • 100VAC-240VAC power feed
