Sydney Metro Light Rail, Australia
Light rail came to Sydney, Australia, in 1997 with the opening of its first modern tramway route from Central Station to the urban area of Pyrmont. The light rail route joined the eight-station monorail loop – which was completed in 1988 – and heavy rail commuter and bus services in providing public transport into the city.
However, while the A$85m project has attracted substantial numbers of passengers travelling to and from Central Station, it has been limited by a lack of extensions into the central business district (CBD).
The population of Sydney has risen above 4.2 million, and the road traffic system reaches virtual gridlock at peak times.
In March 2008 an A$12bn European-style metro rail line for Sydney was unveiled, which would service growth areas from the CBD to the city's north-west.
The North West Metro is the first major transport initiative to be unveiled under the Sydney Link programme, which plans to begin construction in 2010, with the first trains operating in 2015.
The project has since taken its first step forward with the announcement on 1 September 2008 that geotechnical investigation vital to building the metro's tunnels had begun.
In 1994, the Sydney Light Rail Company was established, and construction of the first line took 16 months, starting on 25 January 1996. Much of the original 3.6km (2.2 miles) alignment was former tramway and railway with track laid in city streets and the old railway corridor around Darling Harbour and Pyrmont Peninsula. Previous tram services were withdrawn in 1961 because they were uncompetitive compared with road transport.
Following the extension from Wentworth Park to Lilyfield on 13 August 2000, the system is now 7.2km (4.5 miles) long, of which 1.5km (1 mile) is street operation. There is a 24-hour service between Central and Star City and from 06.00 to 23.00 to the terminus at Lilyfield, midnight at weekends. The peak hour frequency is ten minutes.
Leading transport operator Connex manages the operation of the Sydney Metro Light Rail route on a seven-year contract (ending in 2008) and is also tasked with managing the city’s monorail loop.
The current light rail route is just the beginning of what could become an extensive network.
The New South Wales Government has initiated SydneyLink, a series of major transport projects, including a North West Metro, an M4 extension, the south west rail link and possible future metro to the west and south east.
Metro Link is a key part of SydneyLink and will transform Sydney's public transport with a number of metro rail lines, the first of which is the North West Metro.
The current light rail network is designed to provide doorstep access to Chinatown and Paddy's Markets, the Entertainment Centre, Sydney Convention and Exhibition Centre, National Maritime Museum, Sydney Casino and the historic Pyrmont Peninsula.
Except for the street section from Darling Drive (next to the Entertainment Centre) along Hay Street to Sydney Terminal, the track of the first section is built on the old Darling Harbour goods line. On-street track is reinforced concrete slabs enclosing the rails with special consideration given to three locations where there is a potential noise and vibration problem. Conventional ballasted track using second-hand rail is used on the route through the former Ultimo freight yard.
Now complete, the system has 14 stopping points. On-street stops, similar to bus stops, are equipped with CCTV surveillance cameras.

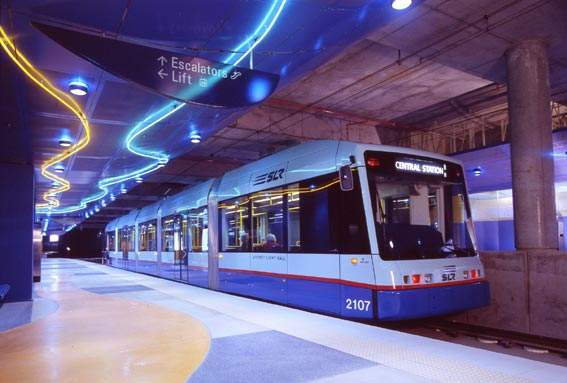

Seven German-design Variotram vehicles, which are 100% low floor (floor to rail level 300mm), have been adapted to suit local conditions and were manufactured in Dardenong, Australia, by Adtranz (now Bombardier) at a cost of A$25m. Running under 750V overhead catenary, they have had their design weight reduced to compensate for the addition of climate-control air-conditioning equipment.
On test, up to three trams have been coupled together, allowing a maximum capacity of 600 passengers in one train if required.
The Variotram design is modular and has been extended for the Sydney system. The bogies have no axles between the wheels and the powered bogies are fitted with gearless hub motors. The articulated design allows a wide body car without overswing on curves.
Power for the three-phase, water-cooled, hub-mounted traction motors is drawn from a 750V dc overhead supply. The Sydney trams are bi-directional and the seating layout has been changed to increase capacity. Folding seats behind the weathershields by the doors can be lifted to accommodate wheelchairs.
The three doors each side have enhanced safety systems with obstacle detection interlocked with the traction system.
