500VA, IP66-Rated Pure Sine Wave Inverter
ABSOPULSE Electronics’ CSI 500-2XD3-IP66 series provides a water, dust, sand, fire and explosion-proof pure sine wave AC-output solution for transportation and other heavy-duty applications.
The CSI 500-2XD3-IP66 high frequency PWM inverters deliver 500VA with pure sine wave output voltage. They provide 115Vac continuous at 60Hz or 400Hz, or 230Vac continuous at 50Hz and accept voltages of 24Vdc (21V-29V range), 48Vdc (42V-56V), 110Vdc (90V-130V), 125Vdc (106V-145V) or custom.
Efficiency is typically 80% at full load. Filtering on the input and output contributes to low output ripple and noise; high frequency ripple is less than 500mVrms. Electronic protection includes 2,250Vdc input-output isolation, inrush current limiting and reverse polarity protection. The units comply with EN60950-1 and corresponding UL 458 and CSA international safety standards. They are rated for operation over a -25°C to 55°C temperature range for full specification; wider temperature ranges are available on request.

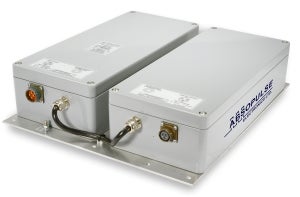

The CSI 500-2XD3-IP66 inverters are packaged in two IP66-rated, diecast aluminum enclosures with sealed circular connectors, mounted on a base plate. The converters comply with certain fire resistance standards and with ATEX explosion protection regulations. If installed in environments with wide daily ambient temperature fluctuations that lead to pressure differentials in sealed enclosures, we employ application-specific vents that equalize pressure without affecting the environmental seal. This contributes to the long -erm reliability of the units.
ABSOPULSE Electronics offers a broad selection of power conversion solutions with IP66 and IP67-rated protection.
For more information, please contact ABSOPULSE.
