Bombardier Transportation Rail Control Solutions

Bombardier Transportation

Bombardier Transportation’s Rail Control Solutions Division portfolio covers the whole range of BOMBARDIER CITYFLO mass transit solutions, ranging from manual to fully automatic to communications-based systems. It provides BOMBARDIER INTERFLO mainline solutions, from conventional systems to European Rail Traffic Management System (ERTMS) Level 3 systems, as well as mining and industrial applications.

In addition, BOMBARDIER OPTIFLO is a comprehensive set of service solutions tailored to address the challenges faced by railway infrastructure owners and operators. OPTIFLO is designed to safeguard investments in rail control systems. By providing a modular, flexible set-up, we can create the perfect tailor-made service solution.

Bombardier’s extensive range includes integrated control systems, computer and relay-based interlocking, automatic train protection and train operation systems, and radio-based rail control and signalling, as well as wayside equipment.

The systems are designed to increase line capacity and availability, whilst maintaining safety, as well as meeting railway operator individual requirements.

This complete palette of wayside and on-board equipment is also available as stand-alone products to meet customer specifications.

Computer-based interlocking systems

Bombardier provides the EBI Lock computer-based interlocking system, which locks and releases train routes on railway lines.

The EBI Lock supervises and controls wayside objects, such as point machines, signals and level crossing protection. The cost-effective system is flexible, quick to install and easily adapted for various signalling principles.

The interlocking systems are based on fail-safe signalling technology and established safety principles.

Automatic train control wayside equipment

EBI Link is a range of wayside components that provide automatic train protection (ATP) for mass transit and main line systems.
The wayside equipment operates in conjunction with on-board ATP computers to provide drivers with information about speed and approaching objects, such as points or signals.

The EBI Link range includes balises, which provide either fixed or variable data from track to train and are compliant with European Rail Traffic Management System (ERTMS) standards. Balises are activated by an antenna mounted under a passing train, eliminating the need for a power supply.

Train location systems, axle counters and track circuits

EBI Track train detection equipment consists of train location systems, axle counters and track circuits. The train location system provides train-to-track communication in conjunction with a transmitter on-board the vehicle and a receiving loop in the track.

The train picks up movements continuously via the track circuit up to the end of the block last cleared.

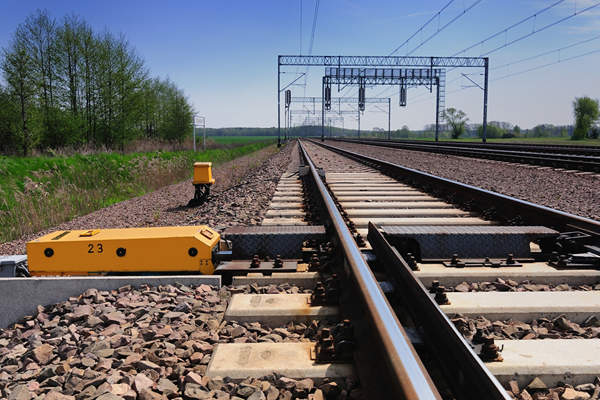

Robust, low-maintenance point machines for railways

Bombardier Transportation offers mass transit and main line point machines, including sleeper-integrated and conventional end-of-sleeper systems, and machines mounted in a recess between the rails.

EBI Switch point machines’ components are robust and durable, and require minimum maintenance. The systems’ modular design enables fast on-site servicing without disturbing traffic.

Optical signals

EBI Light optical signals are used to provide trains with proceed or not-to-proceed information.

The main line and mass transit solutions include tunnel signals, fibre-optic searchlight and alpha-numeric signals, and multi-aspect colour signals.

Railway level crossings

EBI Gate level crossings provide highly reliable barriers and signals across a main line or mass transit network. The Bombardier crossing systems allow for the application of various warning devices and detectors, as well as offer short repair times and easy maintenance.

About Bombardier Transportation

Bombardier Transportation is a global leader in rail technology and offers one of the broadest portfolios in the industry. It covers the full spectrum of rail solutions, ranging from trains to sub-systems and signalling. The company also provides complete transport systems, e-mobility technology and maintenance services.

As an innovation driver, Bombardier Transportation continuously breaks new ground in sustainable mobility. It provides integrated solutions that create substantial benefits for operators, passengers and the environment. Headquartered in Berlin, Germany, Bombardier Transportation employs around 39,400 people and its products and services operate in more than 60 countries.

Please send us an enquiry by filling in the form below if you would like to receive our wayside catalogue.

Make an enquiry

Follow this company

Follow the company to be always up to date with this company

Press Release

Bombardier MOVIA Fleet to Double Capacity on Singapore Downtown Line

Rail technology leader Bombardier Transportation has completed the delivery of 141 new BOMBARDIER MOVIAMetro cars for Singapore’s underground Downtown Line (DTL), part of its mass rapid transit (MRT) network.

Address
Bombardier Transportation, Rail Control Solutions

Marieviksgatan 29 Box 470 36

100 74 Stockholm, Sweden

+46 10 852 00 00 +46 10 852 51 00 Bombardier Website

Bombardier Transportation Images

Products and Services

EBI Gate Level Crossing

The EBI Gate family gives a flexible level crossing solution for all crossings. The system includes signals for both trackside and for roadside functions. Different barrier machines are available.

EBI Link Wayside Equipment

EBI Link wayside equipment is a range of wayside components including balises that provide automatic train protection (ATP) for main line and mass transit systems. EBI Link operates in conjunction with the on-board ATP computer, giving drivers speed information and details about approaching target objects such as signals or points.

EBI Lock Computer-Based Interlocking Systems

EBI Lock computer-based interlocking systems lock and release train routes on main line and mass transit systems. They supervise and control wayside objects such as signals, point machines and level crossing protection.

EBI Track Train Detection Equipment

EBI Track train detection equipment for main line or mass transit consists of train location systems, track circuits and axle counters. The train location system provides train-to-track communication in conjunction with a transmitter on-board the vehicle and a receiving loop in the track. The train receives movement authority continuously via the track circuit up to the end of the block last cleared. The detection of vehicles usually occurs through normal track circuits or axle counters.

Point Machines for Main Line and Mass Transit Applications

Bombardier Transportation has a complete range of point machines for main line and mass transit which includes sleeper-integrated point machines, conventional end of sleeper machines and machines mounted in a recess between the rails, providing the flush finish required in a street type environment.
